- Floorplan - 2017 Winnebago Vista 26HE
-
Sleeps 4
-
1 Slides
-
Bunk Over CabRear Bedroom
-
27ft Long

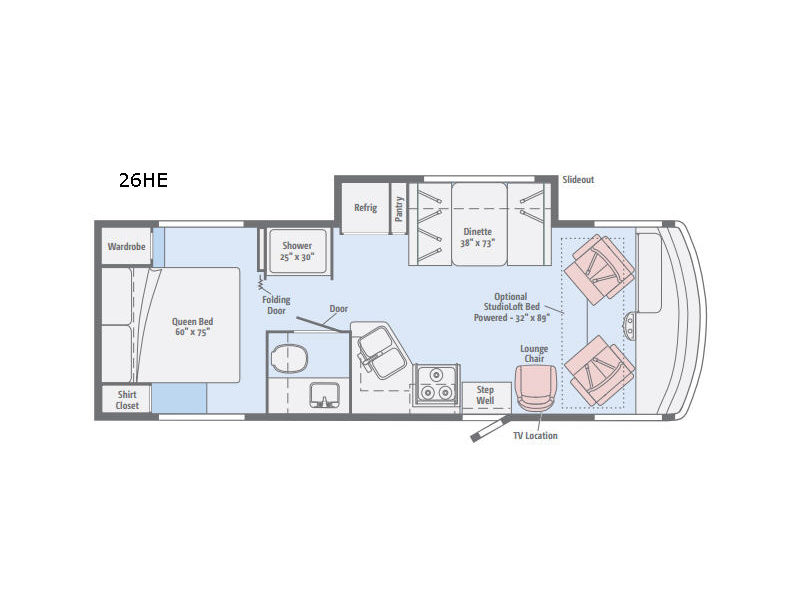

26HE Floorplan
Specifications
Sleeps | 4 | Slides | 1 |
Length | 27 ft 4 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 2 in | Int Height | 6 ft 8 in |
Hitch Weight | 5000 lbs | GVWR | 16000 lbs |
Fresh Water Capacity | 54 gals | Grey Water Capacity | 38 gals |
Black Water Capacity | 43 gals | Furnace BTU | 30000 btu |
Fuel Type | Gasoline | Miles | 19544 |
Engine | Triton V10 | Chassis | Ford F53 |
Fuel Capacity | 80 gals | Wheelbase | 158 in |
Available Beds | Queen | Refrigerator Type | Two Door with Freezer |
Cooktop Burners | 3 | Shower Size | 25" x 30" |
Number of Awnings | 1 | Axle Weight Front | 6500 lbs |
Axle Weight Rear | 11000 lbs | LP Tank Capacity | 18 |
Water Heater Capacity | 6 gal | AC BTU | 14800 btu |
Basement Storage | 117 cu. ft. | TV Info | 32" HDTV |
Awning Info | 19' Powered with LED Lights | Gross Combined Weight | 23000 lbs |
Shower Type | Standard | VIN | 1F64F5DY6G0A14995 |
Description
This Winnebago Vista 26HE class A gas coach is ready to take you on your next family outing.
Step inside and find a slide out refrigerator, pantry, and 38" x 73" booth dinette opposite the door. The dinette features seat belts making it safe for your rear seat travelers. You will also find an extra lounge chair behind the passenger seat allowing plenty of comfortable seating for everyone to enjoy, and right up above there is a 32" HDTV for you to enjoy as well.
Cook meals and snacks easily with the kitchen amenities provided. There is a double sink, a three burner range, and plenty of overhead cabinet space for dishes and things.
Heading toward the bedroom accommodations in the rear of the unit you will pass a private toilet area which includes a sink on your left, and a shower on your right.
The rear bedroom area offers a queen size bed with shirt closet on one side, and a wardrobe on the other. You will also appreciate the folding door which provides added privacy when closed. There is also additional sleeping space available up front when you add the optional StudioLoft powered drop down bed above the cab area which is 32" x 89", and so much more!
Features
- Tailgate Package refrigerator, 3-drawer cabinet, LED lights, portable grill w/folding stand, Quick-Connect LP hose, stainless steel sink, ice chest with drain plug, silverware tray, wall-mounted bottle opener, garbage bag holder, paper towel holder (29VE, requires ordering the 1000-watt inverter option)
- 3-valve Triton® V10 engine SEFI, TorqShift™ 6-speed automatic transmission w/tow/haul, 175-amp. alternator
- Hydraulic brakes w/ABS
- Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- 7-pin connector
- Stainless steel wheel liners
- Automatic hydraulic leveling jacks
Cab Conveniences
- Radio/Rearview Monitor System DVD receiver with 6.2" LCD color touch screen, handheld remote, iPod®/MP3 input, rear color camera, Bluetooth®, SiriusXM®-ready, Spotify®, AppRadio One
- Cab seats adjustable armrests, fixed lumbar support, and multi-adjustable slide/recline/swivel
- 3-point seat belts
- Chassis/house battery radio power switch
- Power steering w/tilt wheel
- Power mirrors w/defrost
- Powered MCD blackout front shade (NA 26HE)
- Front wraparound curtain (26HE)
- Cruise control
- Map light
- Sunvisors (26HE)
- Dash workstation w/USB and 12-volt powerpoint
- Motor cover w/integrated snack tray
Interior
- 32" HDTV (26HE, 31KE)
- 39" HDTV (31BE)
- 40" HDTV (29VE, 32YE)
- Amplified digital TV antenna system
- Satellite system ready (32YE)
- MCD blackout roller shades
- OnePlace® systems monitor
- Roof vent (lounge) (NA 32YE)
- Tinted windows
- LED lights
- Vinyl flooring throughout
- Assist bar
- StudioLoft™ (powered w/ladder)
Galley
- Laminate countertops w/decorative backsplash
- 2-door refrigerator/freezer (NA 31BE, 32YE)
- Large, 2-door refrigerator/freezer (31BE, 32YE)
- Microwave oven w/touch controls
- 3-burner range w/oven
- Stainless steel double sink
- Powered roof vent (32YE)
Optional Galley Equipment
- Large 4-door refrigerator/freezer w/icemaker, cold water purification system (32YE)
Bath
- Laminate counter-top w/decorative backsplash
- Flexible showerhead
- Textured glass shower door
- Skylight
- Toilet w/foot pedal
- Powered roof vent (NA 32YE)
- Powered roof ventilator fan (32YE)
- Towel bar(s)
- Towel ring(s)
- Robe hook(s)
- Tissue holder
Bedroom
- King bed w/foam mattress and storage below (32YE)
- Queen bed w/foam mattress and storage below (32YE)
- Bedspread
- Headboard
- Bunk beds w/foam mattresses, mattress covers, and privacy curtain (31BE)
- Powered ventilator fan (29VE, 31BE)
Optional Bedroom Equipment
- 2 DVD players w/10.1" LCD monitors and headphones (31BE bunk beds)
- 24" HDTV (29VE, 31BE, 32YE)
Exterior
- Premium high-gloss sidewall skin
- Automatic entrance door steps
- Powered patio awning
- Front mud flaps
- Porch light w/interior switch
- Incandescent lighted storage compartments (in select compartments)
Optional Exterior Equipment
- Entertainment center 32" HDTV w/remote and speakers (31BE, 32YE)
- Entertainment center 40" HDTV w/remote and speakers (29VE)
Heating & Cooling System
- 14,800 BTU air conditioner w/ChillGrille™
- 30,000 BTU low-profile furnace (NA 32YE)
- 35,000 BTU low-profile furnace (32YE)
Electrical System
- AC/DC load center, 45-amp. converter/charger
- 30-amp. power cord
- 4,000-watt Cummins Onan® MicroQuiet™ gas generator
- 2 deep-cycle Marine/RV Group 24 batteries
- Battery disconnect system (coach)
- Automatic dual-battery charge control
- Auxiliary start circuit
- AC duplex receptacle
- Cable TV input
- Exterior antenna jack
- DC receptacles
- AC/DC inverter w/ remote panel and exterior antenna jack. Only available w/ optional Tailgate Package (29VE)
Plumbing System
- Service Center colored labels, pressurized city water hookup w/diverter valve, drainage valves, 10' sewer hose
- 6-gallon LP water heater w/electronic ignition
- Heated holding tank compartment
- Permanent-mount LP tank w/gauge
- On-demand water pump
- TrueLevel™ holding tank monitoring system
- Winterization Package water heater bypass valve and siphon tube
- LPG accessory connection (patio) (29VE)
Safety
- Child seat tether anchor (forward facing dinette seat)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- High-mount brake lamp
Warranty
- 12-month/15,000-mile basic limited warranty
- 36-month/36,000-mile limited warranty on structure
- 10-year limited parts-and-labor warranty on roof skin
- See dealer for complete warranty information
See us for a complete list of features, options & warranty information!
All standard features and specifications are subject to change.
